VCOM Import - KACO direct

    Technical specifications

    protocol

    Kaco direct

    data file

    csv

    reporting interval

    900 seconds

    server

    www1.meteocontrol.de

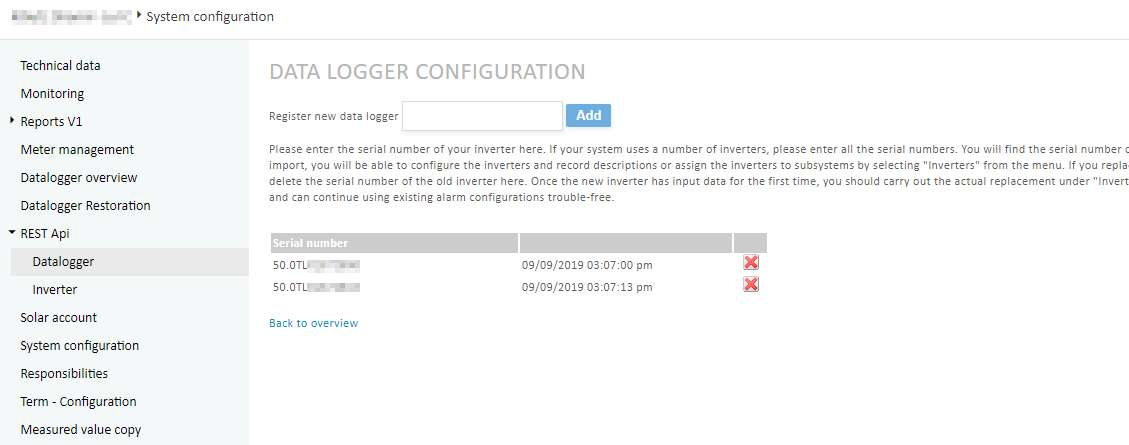

    Data logger configuration in the VCOM

    • Create a new system in the VCOM and add the REST API
    • Enter the inverter S/N correctly, e.g. 50.0TLXXXXXXX


    Communication setup data logger

    Enable data transfer to meteocontrol

    Troubleshooting:

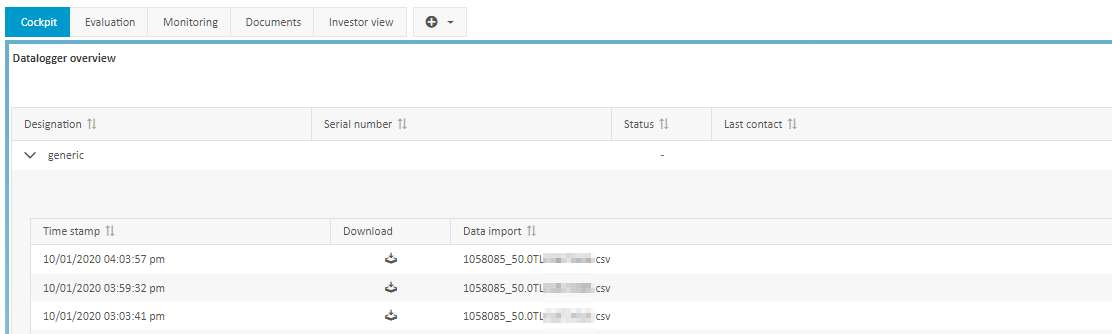

    Use the "Data logger overview" portlet to download the data file from the data logger

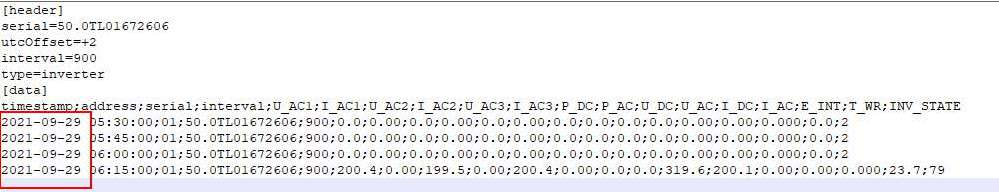

    Typical causes for missing data in the VCOM

    • Interval column with incorrect data
    • The inverter sends only one file throughout the day
    • Data file is empty
    • Incorrect time stamp in the data file

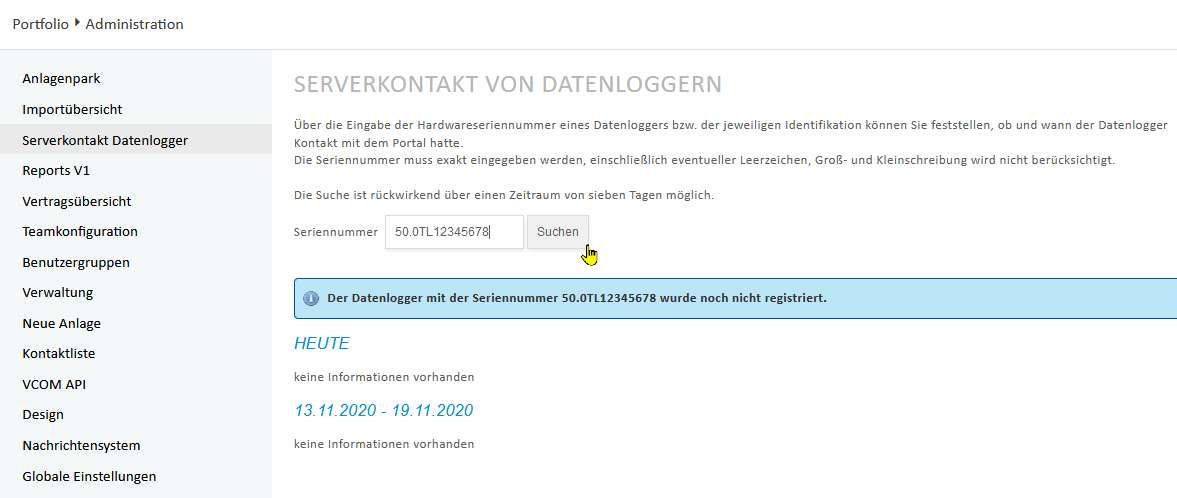

    • The inverter does not establish a connection to meteocontrol
