VCOM Import - Fronius Datamanager 2.0

    Technical details

    protocol

    ftp push

    data file

    json

    reporting interval

    variable / 300 seconds (recommended)

    server

    ftp.sspcdn-a.net
    Supported device types

    Inverter

    String measurement

    Weather sensors

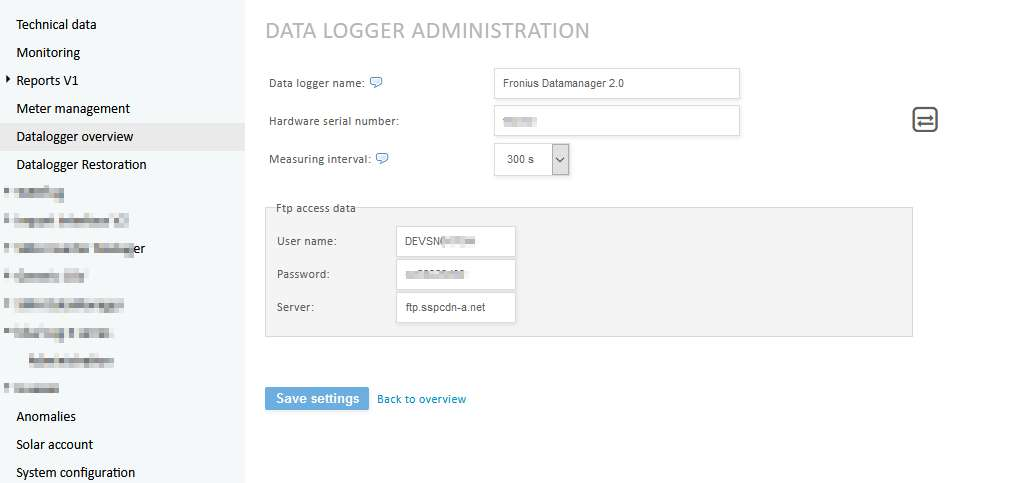

    Data logger configuration in the VCOM

    • set up a system in VCOM and select Fronius Datamanager 2.0 as the measured value system
    • Enter the serial number of the data logger and select the data recording interval


    Communication settings data logger

    • The recording interval should be identical in all data loggers in a system to ensure that the graphics are correctly displayed in the VCOM
    • Copy the ftp access data specified in the data logger configuration and store it in Fronius Datamanager 2.0 (ftp server, ftp user name, ftp password)

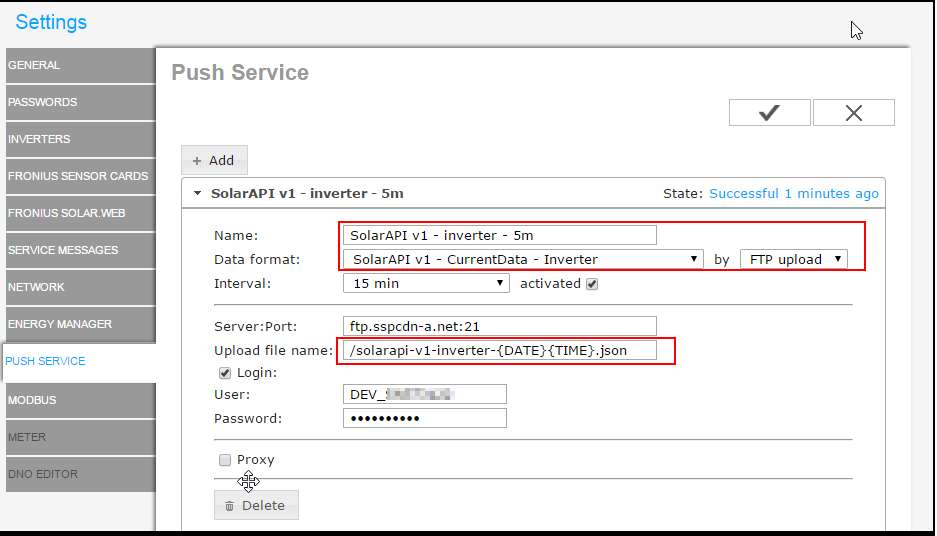

    Here is an example of the configuration for the transmission of inverter data.

    The ending of the data file must end with .json.
