Technical details
|
protocol |
ftp-push |
|
file format |
csv |
|
recording interval |
variable / 300 seconds (recommended) |

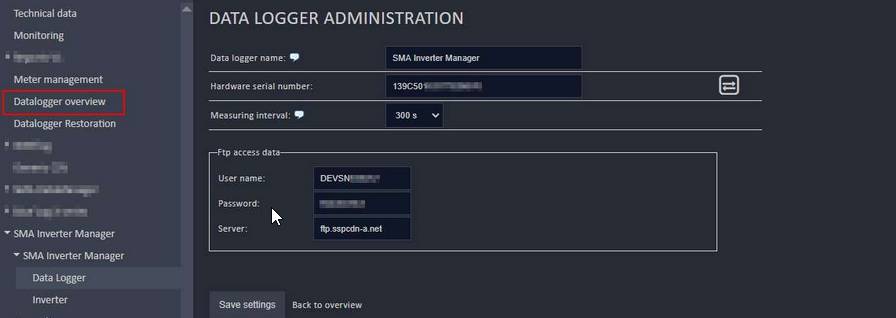

Datalogger setup in VCOM
- create a new plant in the VCOM and add device type SMA Inverter Manager
- insert correct datalogger serial number and choose local recording interval settings
Communication setup datalogger
- please take care that all dataloggers assigned to one project in VCOM use the same recording interval to ensure that charts work properly
- copy given ftp server data in VCOM setup and insert it into datalogger setup
- perform communication test

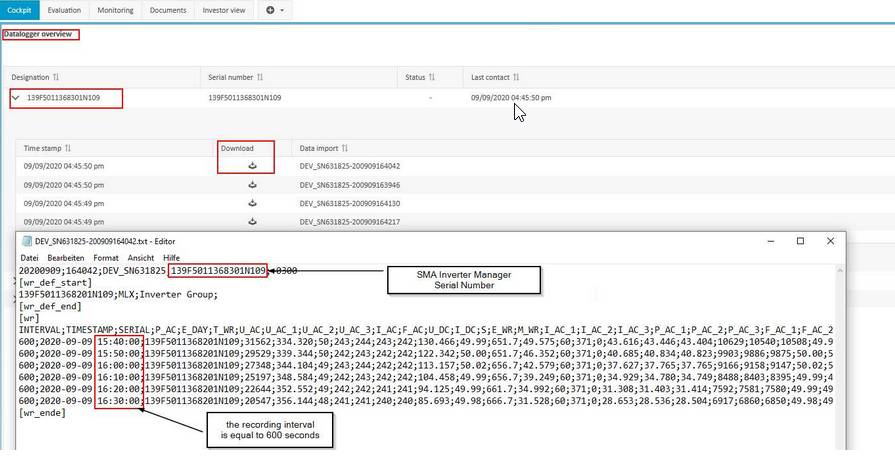

Check VCOM datalogger setup
To make sure that datalogger serial and recording interval was set correctly in VCOM, please open an imported file in VCOM datalogger portlet
