VCOM Import - meteocontrol Import Interface V2

    How to use the Import Interface V2

    Technical details

    protocol

    ftp

    file format

    Xml or csv

    recording interval

    variable / 300 seconds (recommended)

    server

    ftp.sspcdn-a.net

    port

    21

    protocol

    HTTP, HTTPs

    file format

    xml or csv

    recording interval

    variable / 300 seconds (recommended)

    server

    mii.meteocontrol.de

    port

    443

    supported devices

    Any device that meets the meteocontrol import specification V2 https://github.com/meteocontrol/meteocontrol.github.io/tree/master/import-specification


    Data import specification V2 for programmers (PDF)
    Further information and examples for programmers (GitHub)
    How to integrate your device into the VCOM portal:

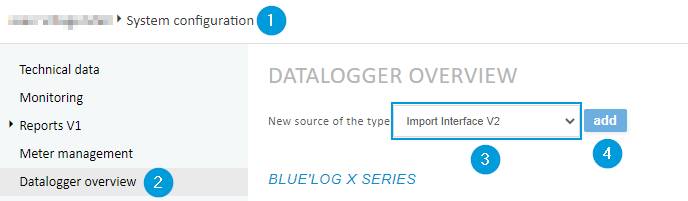

    1. At the plant level, select System configuration -> Datalogger overview, select Import Interface V2 and confirm with add.

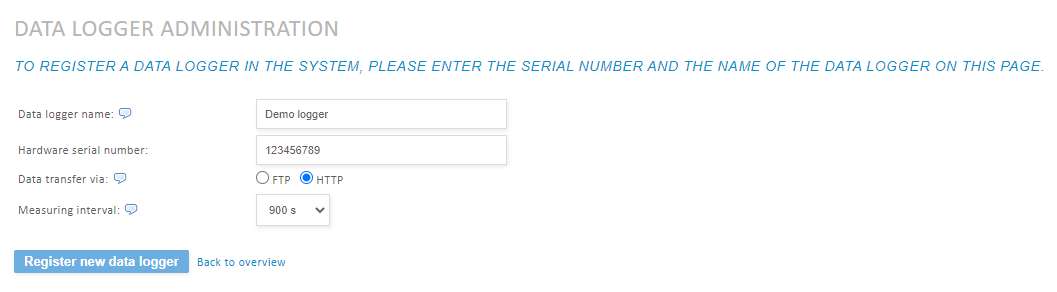

    2. Enter the name and serial number of the Datalogger, as well as the Data transfer type and the Measuring interval used:

      Confirm your settings by Register new data logger.
