How to connect your blue'Log to the VCOM portal
Technical details
|
protocol |
HTTP-PUT (TCP) |
|
file format |
xml |
|
recording interval |
variabel / 300 secs (recommended) |
|
server |
|
|
port |
443 |
Datenlogger setup in VCOM

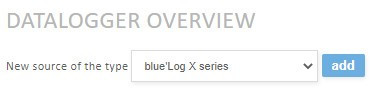

- select at portfolio level -> Configuration -> Datalogger overview
- select blue'Log X series:

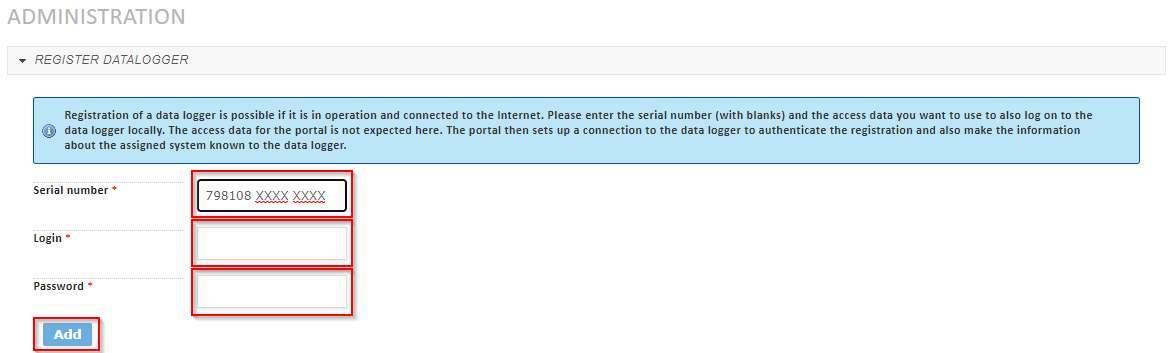

- Enter the data of the blue'Log in the appropriate fields:
A data logger can be registered if it is in operation and connected to the Internet. Please enter the serial number (with spaces) and the access data that you would like to use to log into the data logger locally. The access data for the portal are not expected here. The portal then establishes a connection to the data logger in order to authenticate the registration and to make the information about the assigned system known to the data logger.
