VCOM Import - Sputnik / SolarMax

    How toconnect your SolarMax / Sputnik inverter to the VCOM portal


    Technical details

    Protocol

    E-mail

    file format

    .xml

    recording interval

    900 Sekunden

    E-mail address

    solarmax@mail1.meteocontrol.de

    data import

    Maxweb
    Enter the e-mail address solarmax@mail1.meteocontrol.de on the Maxweb data logger or Solarmax / Sputnik inverter.

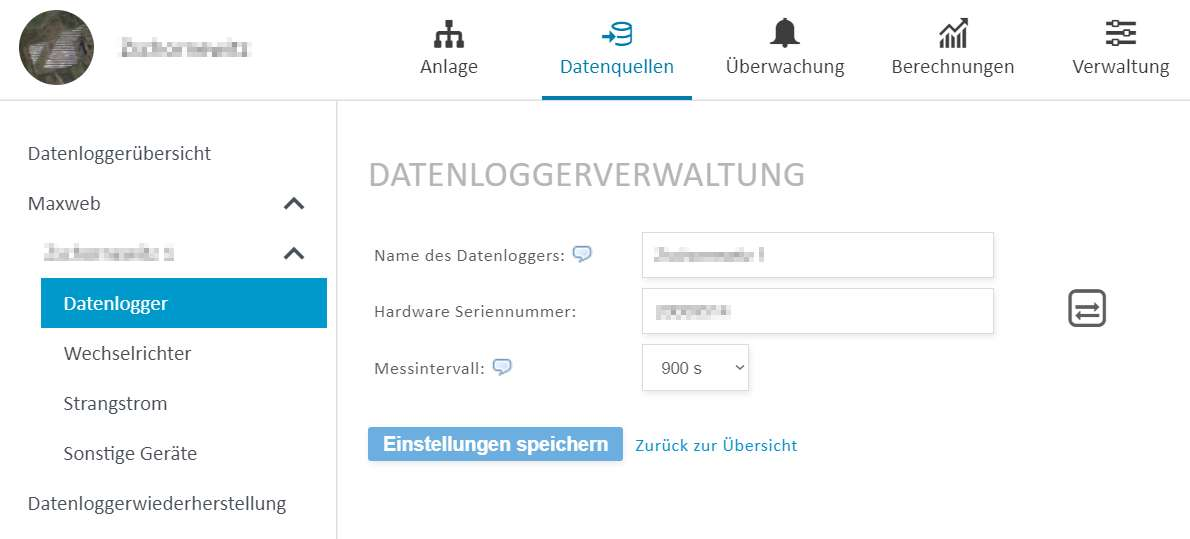

    VCOM datalogger setup

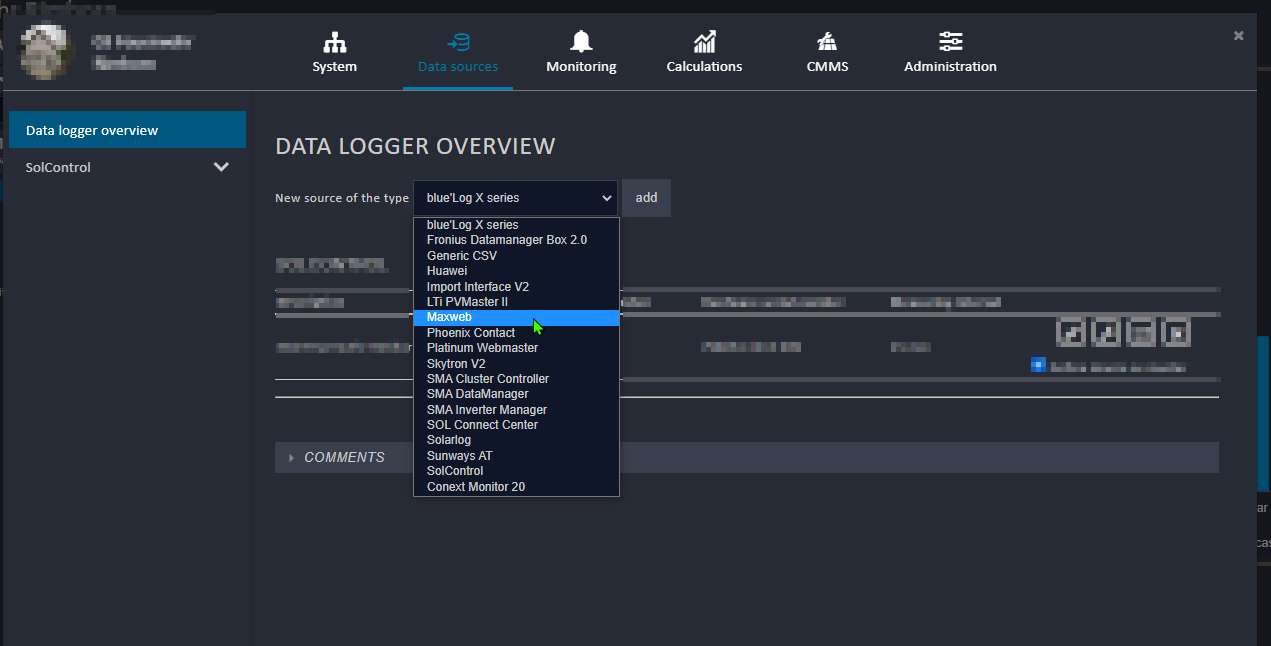

    • Select at plant level -> Settings -> Data logger overview
    • Select Maxweb and confirm the selection.
    • Enter a data logger name and the calculated serial number of the inverter.
    • The S/N from the data logger must be added to 60000 and this is then the S/N that must be entered in the portal.
      Leave the measurement interval set to 900s.


    Add 60000 to the S/N from the inverter and enter the result as the hardware serial number.
