How to connect your Solar-Log data logger to the VCOM portal
Note the serial number of the Solar-Log data logger

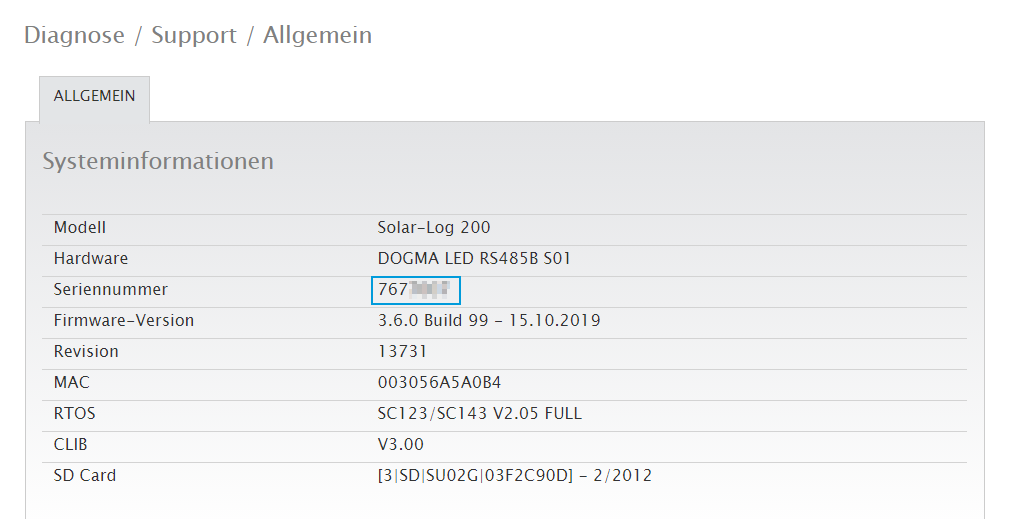

The serial number of the data logger can be found under -> Diagnosis -> Support -> General:
Register Datalogger in VCOM
- Select at system level -> Settings -> Datalogger overview
- Select Solarlog as the source and select Add.

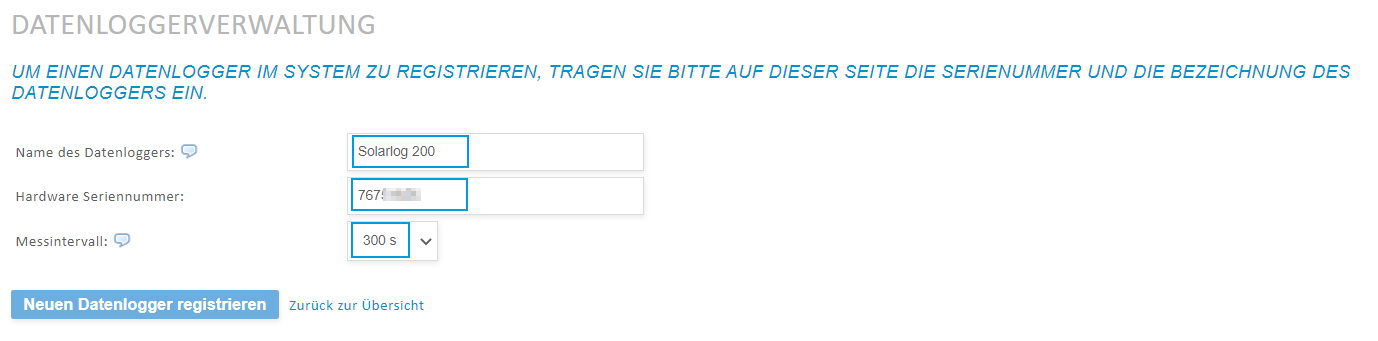

- Enter a datalogger name as well as the hardware serial number and the measuring interval of the datalogger.
- If there are several data loggers in one system, the measuring intervals of all data loggers must be identical!
-
Then select Register new data logger
-

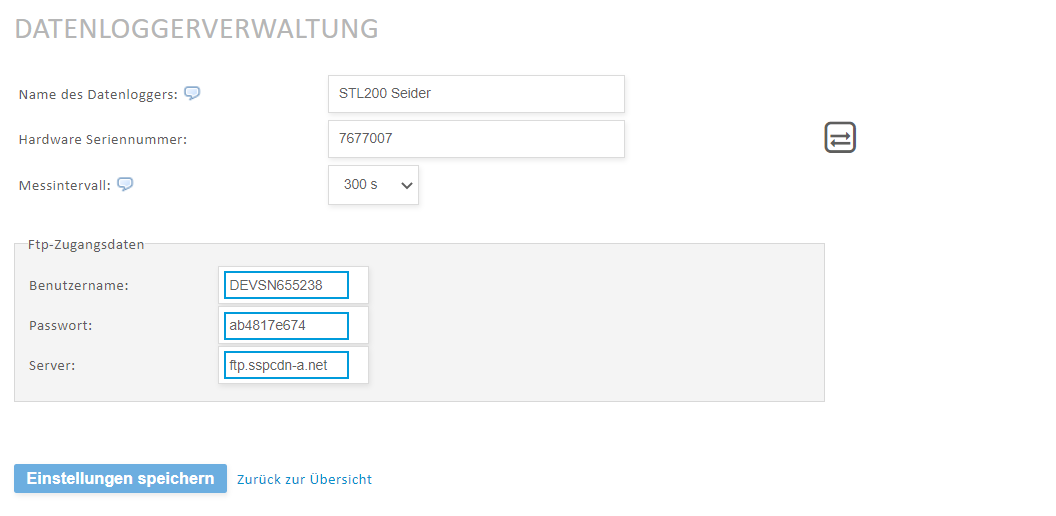

The FTP access data for the Solar-Log datalogger are displayed:
Configuring the Solar-Log Datalogger

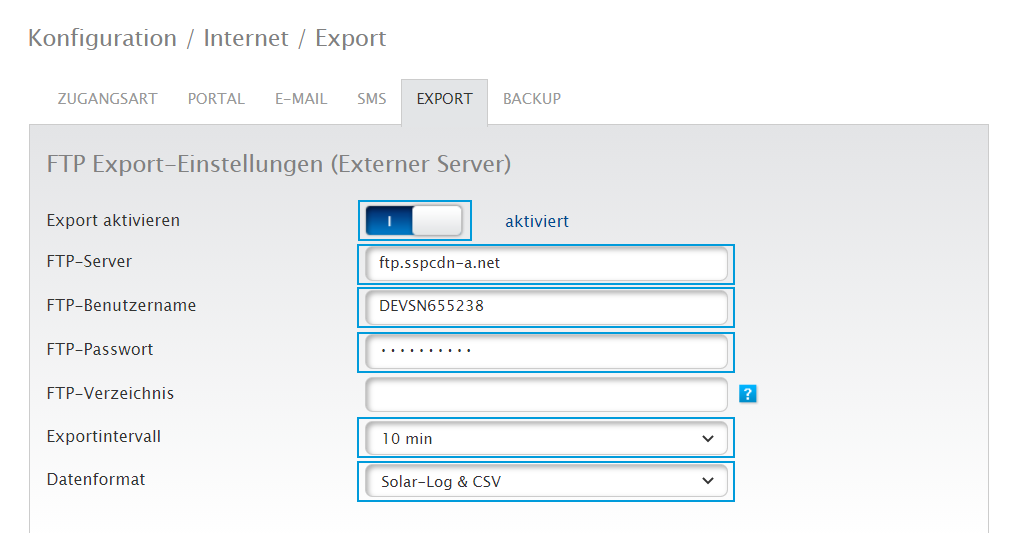

- Enter the FTP access data in the Solar-Log datalogger under -> Configuration -> Internet -> Export (note upper and lower case!)
- Leave the FTP Directory field blank
- Set the data format to Solar-Log & CSV.
-

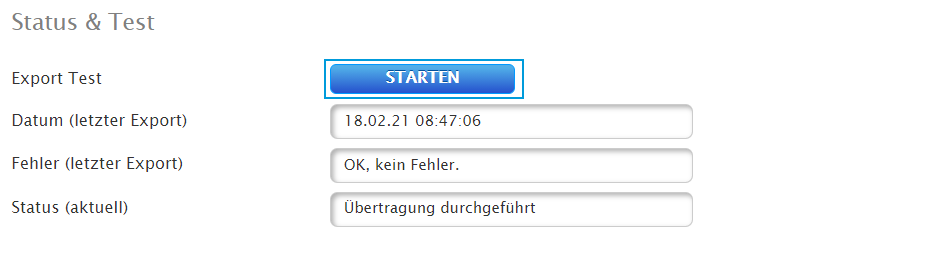

Perform a test transfer by clicking the START button.
- Check whether the system date and time have been set correctly on the Solar-Log.
