VCOM Import - Sungrow Logger 1000/3000/4000

    Technical details

    Protocol

    FTP push

    Data file

    XML

    Reporting interval

    variable / 300 seconds (recommended)

    Server

    see FTP server setup in VCOM

    Supported device types

    Inverter

    String measurement

    Weather sensors

    Supported Sungrow Loggers

    1000, 3000, 4000

    please perform a  sw update of the sungrow logger

    first, if possible.

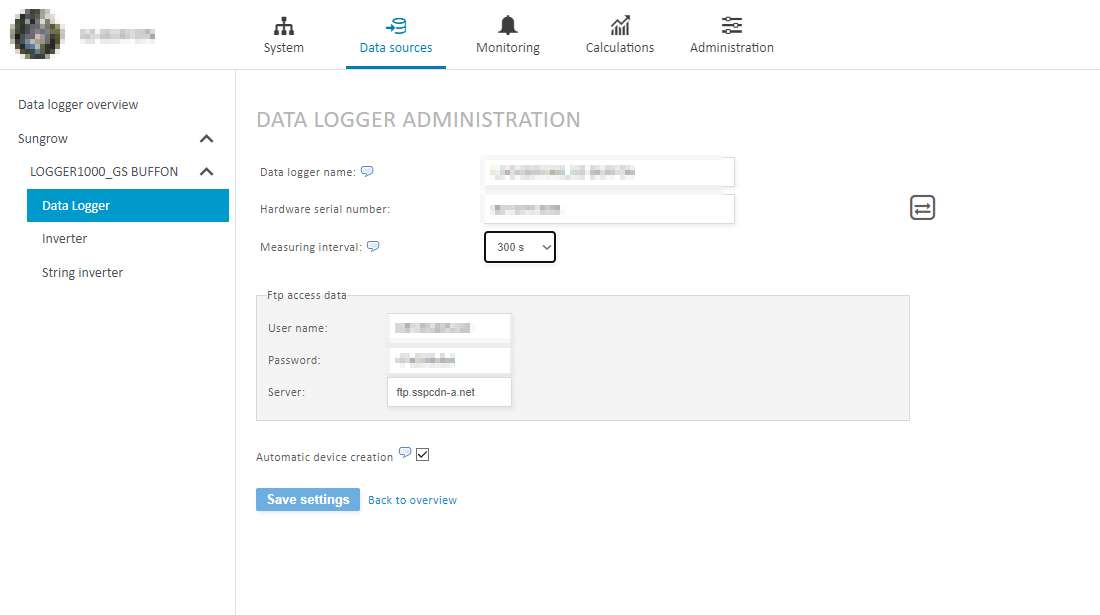

    Data logger configuration in VCOM

    • Set up a system in VCOM and select Sungrow as the measured value system
    • Enter the serial number of the data logger and select the data recording interval




    Communication settings data logger

    • The recording interval should be identical in all data loggers in a system to ensure that the graphics are correctly displayed in the VCOM

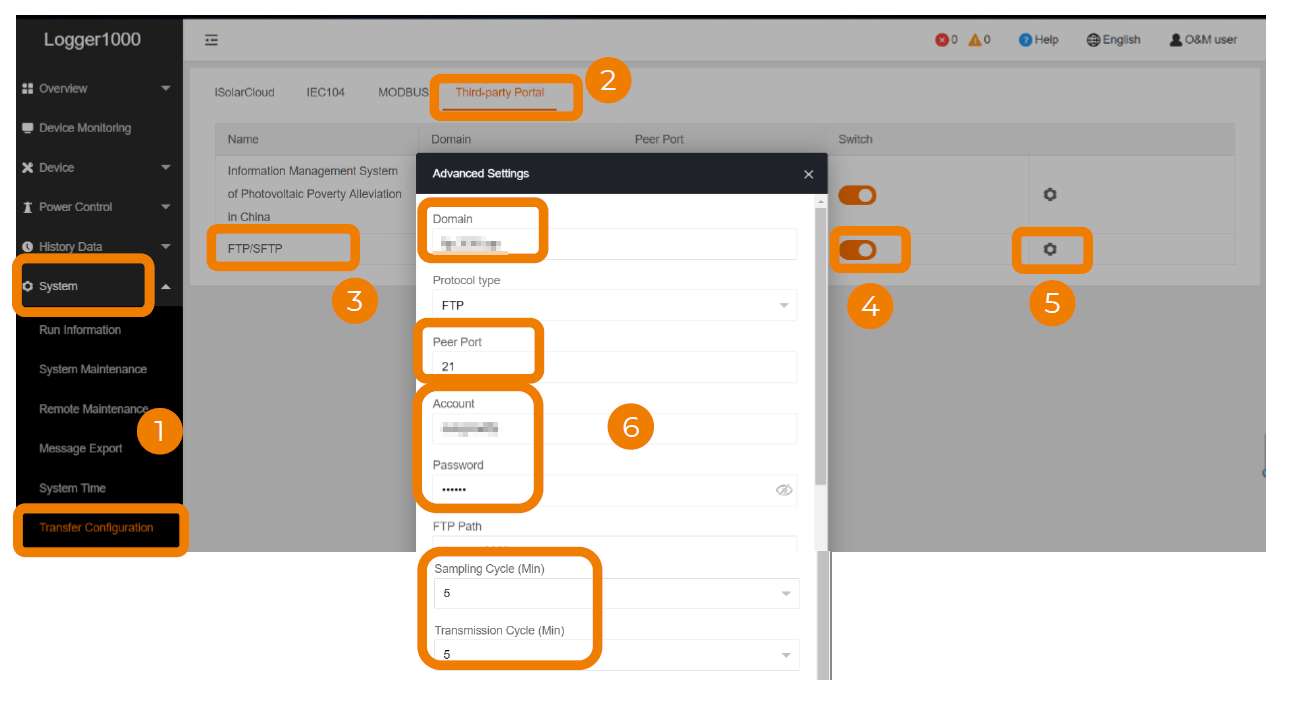

    • Copy the ftp access data specified in the data logger configuration and store it in Sungrow Logger (ftp server, ftp user name, ftp password)
