Technical details
|
protocol |
HTTP, HTTPs |
|
file format |
xml or csv |
|
reporting interval |
variable / 300 seconds (recommended) |
|
server |
mii.meteocontrol.de |
|
port |
443 |
|
Supported device types
|
according to meteocontrol import specification
https://github.com/meteocontrol/meteocontrol.github.io/tree/master/import-specification |

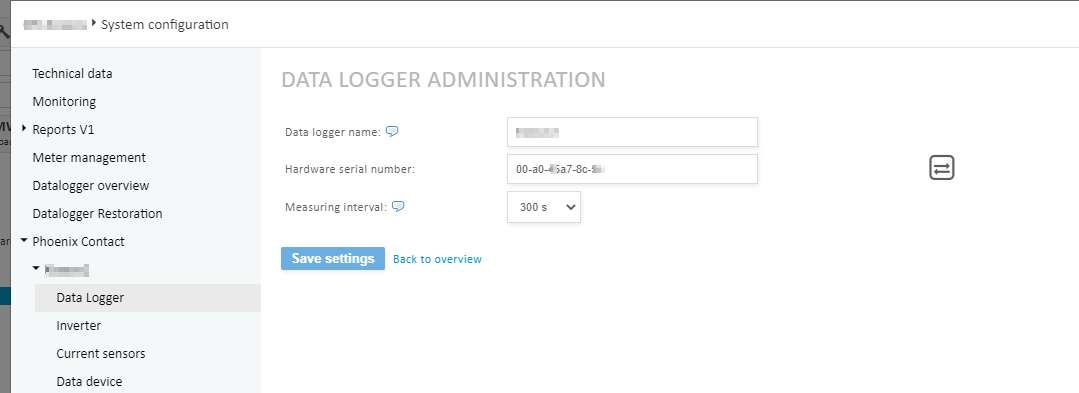

Daa logger configuration in the VCOM
- set up a system in the VCOM and select the system "Phoenix Contact" as the measured value
- the name of the data logger can be freely selected
-
Enter the serial number of the data logger, this is normally the MAC address, but the colons ":" must be replaced by the minus "-"
- Select data recording interval, 300s
Communication settings data logger
Please contact your supplier or Phoenix Contact regarding the configuration of the Phoenix Contact hardware.
