How to connect your LTi data logger to the VCOM portal
Technical details
|
protocol |
ftp |
|
data file |
xml or csv |
|
reporting interval |
variable / 300 seconds (recommended) |
|
server |
|
|
port |
21 |
Data logger configuration VCOM

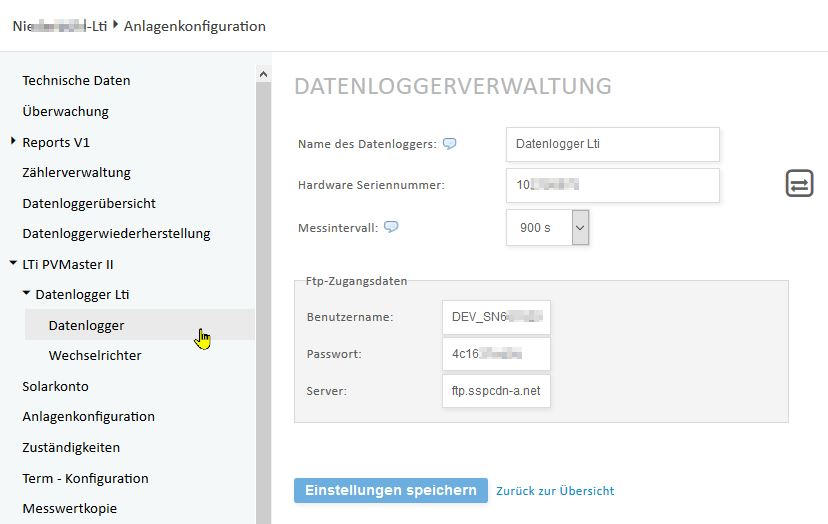

At system level, select -> Settings -> Data logger overview
Choose LTi PVMaster I or LTi PVMaster II
Choose a unique name that fits the system.
Enter the hardware S/N of the data logger. If the S/N is not known, temporarily enter e.g. "Test_Anlage_024680".
Enter the FTP access data on the LTi PVMaster and pay attention to upper and lower case letters.
Set the system date, time and offset correctly on the LTi PVMaster.
Check the IP settings for correctness e.g. gateway, DNS server etc.
Perform a connection test on the LTi inverter to test the FTP push functionality.
