WEBlog - Retrieve missing data in the VCOM (WEB'log)
1) If you have a park administration in VCOM and have the corresponding rights
- Click the
symbol with the house and then the symbol with the cogwheel

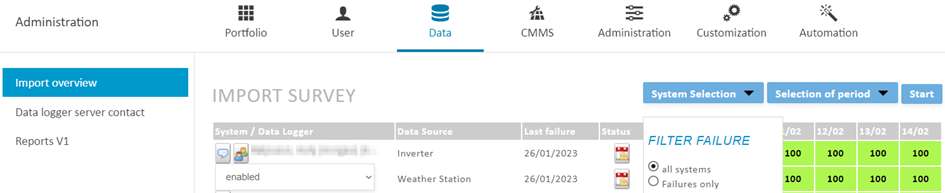

- Then click on
"Data" and "Import overview" in the new window
- On the button "System Selection", set the filter to "all systems" and click on "Start" on the right
- The corresponding data logger can be found by scrolling through the list (not identifiable)
- Two data
tables are available with this data logger (Analog / Digital, String currents)
- Use button to retrieve the data can be selected at the
bottom right
- In the new window, the individual days for catching up can be clicked on
- Finally click
at the bottom on
- If the system includes several data loggers, the procedure must be carried out for each data logger
2.) You can copy the records from the CF memory card
- WEB'log disconnect the power
- Pull CF memory
card out of slot (right side of WEB'log)
- Insert the CF
memory card from the WEB'log into a USB memory card reader
- Connect memory
card reader with USB to PC
- Access the new
drive with the Explorer
- Mark the
subdirectory DATA and press (Ctrl) (C) for copying
- Navigate to a
drive on the PC, e.g. "C", and create a new directory
- In the new
directory, press (Ctrl) (V) to insert
- The complete
subdirectory DATA of the WEB'log is copied to the PC (this may take a few
minutes, however)
- Mark the DATA directory and zip this directory, e.g. with "7-Zip"
- Send the zip
archive by e-mail to "technics@meteocontrol.com", subject "Data
import", please include the S/N of the data logger (xxxxxx xxxx xxx) so
that we can import the attached data, thank you
- Dismount the
memory card reader from the PC and unplug the USB memory card reader
- Remove the CF
memory card from the memory card reader and reinsert it in the WEB'log
- WEB'Log reconnect the power
