The CSV export function offers the option of exporting all existing measured values and calculated values from one or more systems as a CSV file.
Open the Report(r) menu and select CSV export

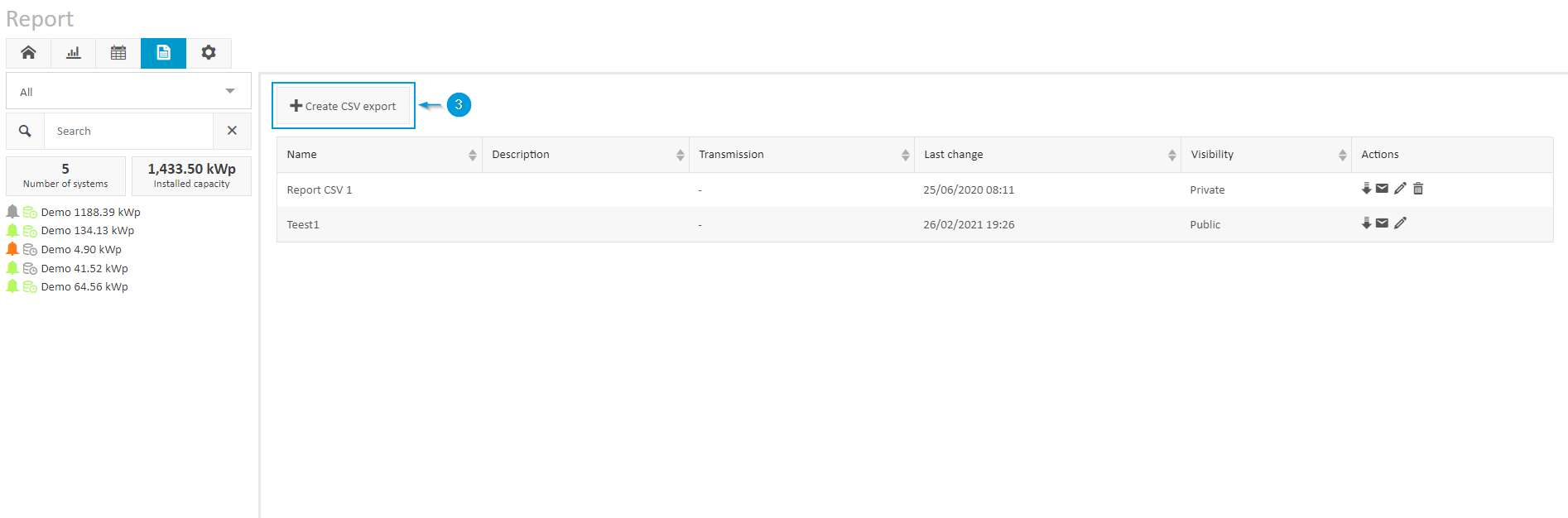

Create a new report:

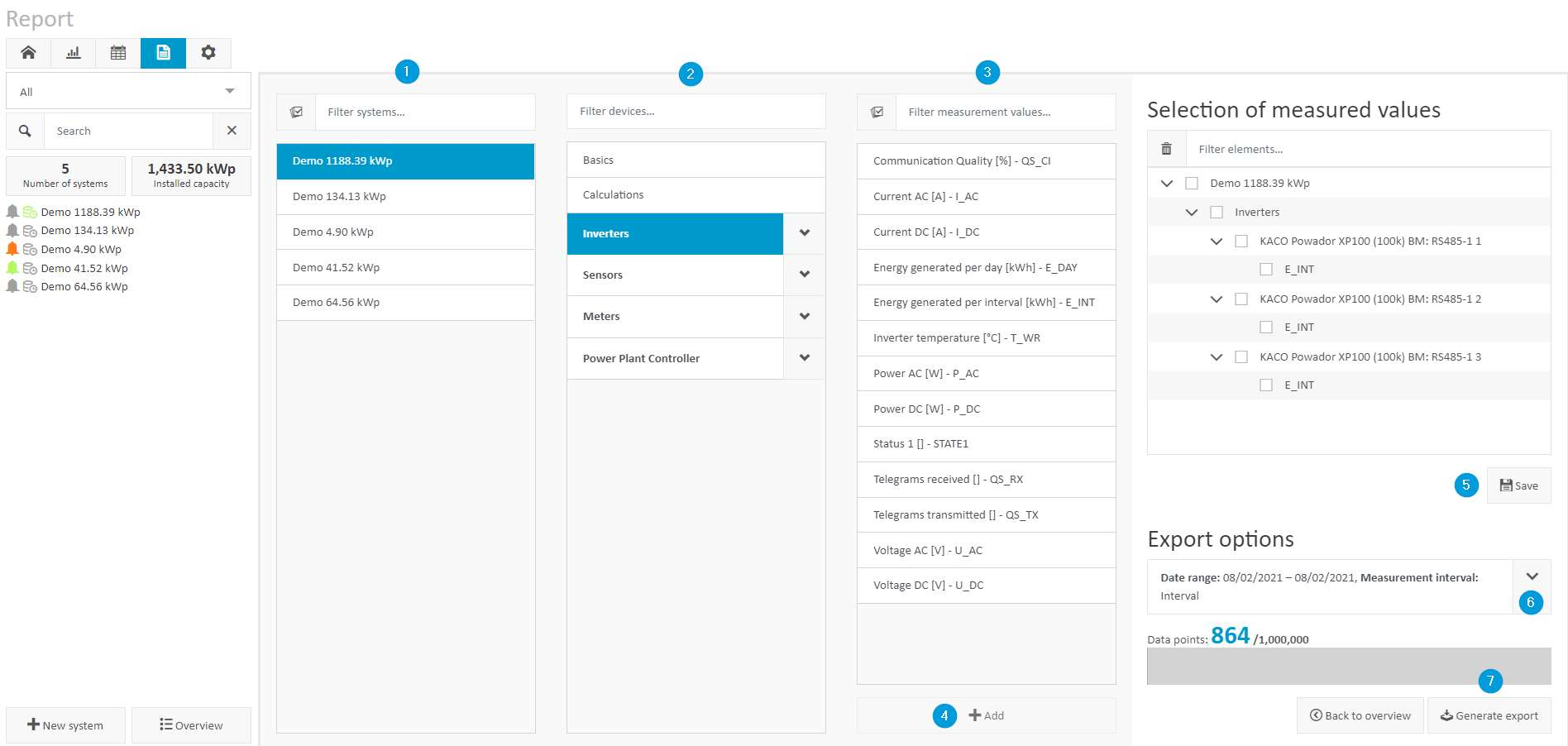

Select the metrics you want
- In the plant selection (1) you can define one or more plants as a source. Please note that if you select several systems, only a limited list of devices and measured values is available.
- All available devices are grouped by type in the device selection (2). Individual devices or an entire group can be selected here.
- In the measured value selection (3), the existing measured values can be transferred to the selection by clicking on the accept button (4) or by double-clicking on the measured value.
- Optionally, you can save the CSV report in the current configuration (5).
- Optionally, you can specify the measured value interval to be exported (6). Please note that a maximum of 1 million measured values can be exported per export.
- Generate the export (7), then you can edit or view the data in a CSV-capable spreadsheet program.
