Description
With this function it's possible to create a backup file of the blue'Log configuration and use it later to restore it on the same blue'Log or on a new one.

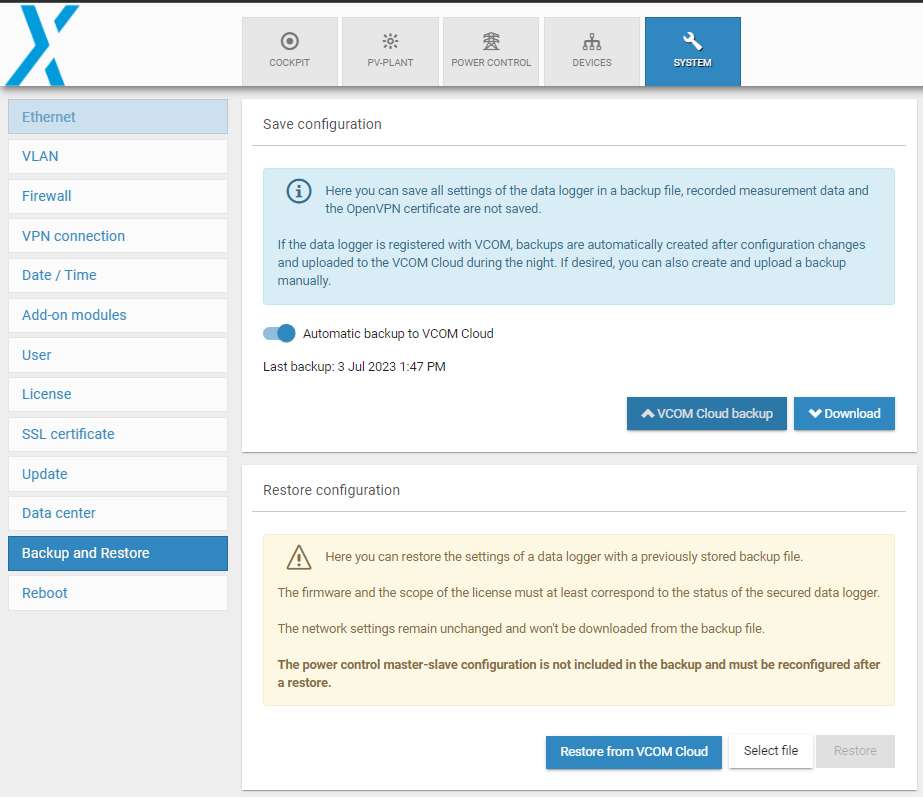

Backup can be done manually and download it on the connected PC or automatically via VCOM.
The content of backup is the configuration
Please note:
User accounts, Network settings, Master-/Slave settings and licenses are not content of the backup.
Therefore it's necessary to prepare the restored logger with the correct licenses, firmware and MX modules before restore.
Afterwards you have to set again the named settings (User account, Network settings...)
Modbus configurator
Modbus configurator files are content of the backup and will be restored
Requirements to restore a backup
To restore a backup on a new datalogger you have make sure to fulfill the following requirements
- Firmware on restore datalogger must be ≥ firmware from the backup
- Licenses on restore datalogger must be ≥ licenses from the backup
- Number of MX-Module variant on restore datalogger must be ≥ number of MX modules from the backup
Examples:
- A backup from a XC-50000 cannot be installed on a XC-2000
- A backup on a XC-200 can be installed in a XC-1000 with RPC license
- A backup on a XC-1000 with 1x MX-RS485 module cannot be installed on a XC-1000 with 2 MX-I/O Modules
- A backup on a XC-1000 with 1x MX-RS485 module can be installed in a XC-1000 with 2 MX-RS485 modules
